Full Marks: 60
Pass Marks: 24
Time: 3 hours

Attempt any two questions: (2 x 10 = 20)

1. Implement the following function F=Ʃ(0,1,3,4,7) using
   • a) Decoder
   • b) Multiplexer
   • c) PLA

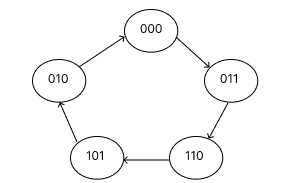

2. Differentiate between synchronous and asynchronous sequential circuit. Design a counter as shown in the state diagram below
3. Explain different types of shift registers with necessary diagrams.

Attempt any eight questions: (8 x 5 = 40)

4. Convert (2AC5)16 to decimal, octal and binary.
5. What do you mean by encoder? Design 3 to 8 line encoder.
6. Design a combinational circuit that multiplies 2-bit numbers, a1a0 and b1b0 to produce a 4-bit product, c3c2c1c0. Use AND gates and half-adders.
7. Design a circuit which produces 2’s complement of the given four bit binary digit.
8. Implement full adder using decoder with truth table and logic diagram.
9. Design a circuit that produces the square of three bit number using ROM?
10. Use K-map to simplify the given function in POS. Implement the simplified function using 2-input NOR- NOR gate only.
    • F = Π M ( 0,1,2,9,10,14)
    • D = Π M ( 7,8,12) With don’t care consitions
11. Discuss race condition in J-K Flip flop and methods to overcome it.
12. Write Short notes on (Any two)
    • a) Coding system in logic design
    • b) Error-detection code
    • c) Universal Gates
